Out With the Old, In With the New—In Three Days
PUBLISHED ON Sep 27, 2016
A Smooth D/3® DCS Upgrade Allows New and Experienced AbbVie Engineers to Work in Their Preferred Ways
OVERVIEW & CHALLENGES

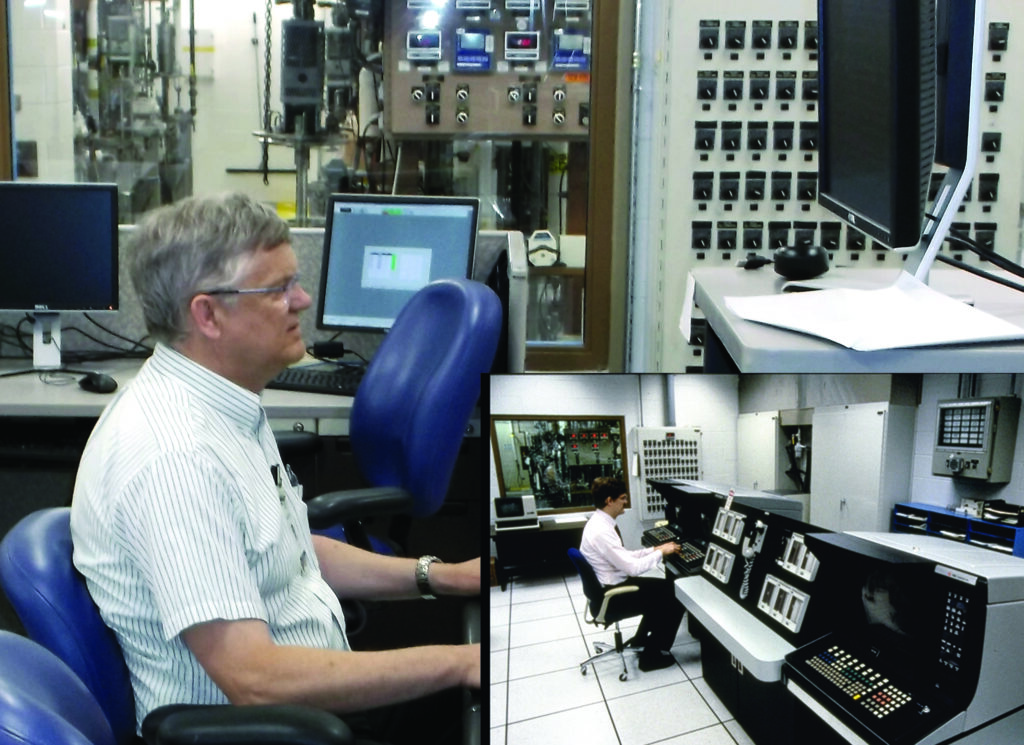

In 1999, NovaTech Automation installed D/3® Version 9 at AbbVie’s North Chicago facility. Although the system was still running seventeen years later, it became increasingly difficult to maintain. Replacement parts were either hard to find or unavailable. Dr. Tom Borkman, the Principal Controls Engineer at AbbVie, noted that “the skill for managing old systems is diminishing quite rapidly.” In addition to these challenges, the system was running on a VMS platform, which Corporate IT no longer wanted to support. With the backing from IT, engineering, and operations, AbbVie was ready to upgrade their NovaTech Automation D/3 System in 2016. AbbVie’s IT organization asked NovaTech Automation to craft a comprehensive, cost-effective plan. AbbVie wanted to gain the benefits of running a modern operating system, which IT, engineering, and operations could all support. The new system would need to allow both new and experienced operators and engineers to capitalize on the capabilities of the new system while retaining their familiar interfaces and operating procedures.
With this being NovaTech Automation’s first time upgrading any system to the D/3® Version 15 (D3V15), NovaTech Automation field engineers worked closely with the NovaTech Automation research and development team while configuring and staging the system. Windows® 2012 R2 was installed using a kit from AbbVie so the operating system would comply with AbbVie standards. The D/3 Version 9 applications were converted from VMS to Microsoft-based files, which were then installed along with the pre-released D3V15 software. This process, along with Factory Acceptance Tests, helped to minimize risk exposure in the field.
Another aspect of the preparation involved Dr. Borkman traveling to Owings Mills, MD, to experience hands-on training and learn the ropes of D3V15. Dr. Borkman also learned that he had a new favorite product: Windows Sequence Statement Debugger (WinSSD). “I love WinSSD,” Dr. Borkman commented, “it’s a well-thought-out product.”
The extensive preparation allowed for a three-day turnaround on the 17-year-old system.
• Monday: The legacy system was shut down. AbbVie operations indicated to NovaTech Automation’s field engineers which part of their process they would like to have control over first.
• Tuesday: After replacing the D/3 equipment in the indicated area, operations had control before the entire job was completed. Then the field engineers continued the process by doing the same to the remaining part of the plant.
• Wednesday: By the afternoon, the whole production plant was back up and running on new servers and five new redundant Process Control Modules (PCMs).
Dr. Borkman not only is pleased with NovaTech Automation’s product, but with their service as well. “[NovaTech Automation is] very responsive. When I have a problem, I can get help quickly, even if it’s over the phone,” Dr. Borkman explained. He also spoke of NovaTech Automation’s responsiveness in terms of customer feedback on a product: “If I recommend something, I’ll see it quickly in the next version or patch, which is what I’ve enjoyed about NovaTech Automation as compared to other companies.”
Due to the success of the upgrade, AbbVie plans to migrate to NovaTech Automation 8000 Series I/O.
• Cyber secure D/3 System
• Substantial increase in communications speed between system components
• Reduced cost through migration of existing applications
• Reduced configuration time through graphical programming interface
• Broad familiarity with Windows Operating System
• Ability to display both legacy and modern operator screens (ProcessVision™), enabling a smooth transition
• Quick turnaround time minimized impact on production and revenues
• Avoided risks due to software and hardware obsolescence
